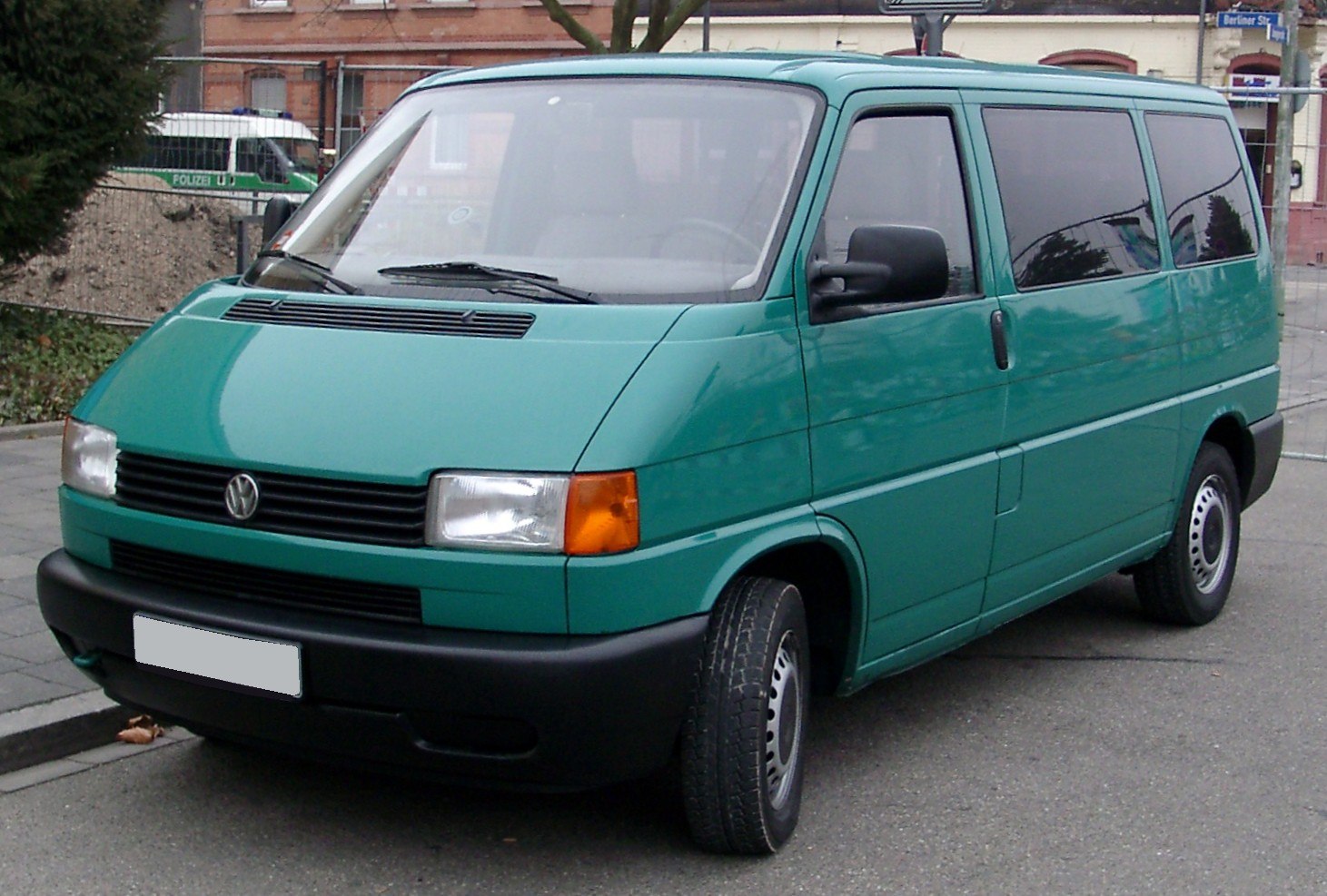

1996 Volkswagen Transporter (T4, facelift 1996) Kombi Dimensions, Size & Specs

Production
Model Year:1996
Production Years:1996 - 2003 discontinued in 2003
1940 - 2430 mm76.4 - 95.7 in6.4 - 8.0 ft
L: 4707 - 5107 mm185.3 - 201.1 in15.4 - 16.8 ft | W: 2175 mm85.6 in7.1 ft
Length
4707 - 5107 mm185.3 - 201.1 in15.4 - 16.8 ft
Width
2175 mm85.6 in7.1 ft
Height
1940 - 2430 mm76.4 - 95.7 in6.4 - 8.0 ft
Trunk Capacity
5400 - 7800 liter190.7 - 275.5 cu ft
Technical Details

Exterior Dimensions

Precise measurements of the 1996 Volkswagen Transporter Kombi, engineered for optimal performance and comfort

Dimensions
Length:4707 - 5107 mm185.3 - 201.1 in15.4 - 16.8 ft
Width:1840 mm72.4 in6.0 ft
Width (Opened Mirrors):2175 mm85.6 in7.1 ft
Height:1940 - 2430 mm76.4 - 95.7 in6.4 - 8.0 ft
Ground Clearance:180 mm7.1 in0.6 ft
Trunk Capacity (Max):5400 - 7800 liter190.7 - 275.5 cu ft
Weight Specifications
Curb Weight:1580 - 1755 kg3483 - 3869 lbs
Maximal permitted Weight:2380 - 2700 kg5247 - 5952 lbs
Roof Load:100 kg220 lbs
Tire Specifications
Rims Size:6J x 15
Tire Sizes:195/70 R15 (W:195 | H:70 | D:15)
205/65 R15 (W:205 | H:65 | D:15)
Useful Information

About 1996 Volkswagen Transporter Kombi

The Volkswagen Transporter T4 Kombi (facelift 1996) is a versatile van produced from 1996 to 2003, known for its practical dimensions and robust design. This generation ranges in length from 4707 mm to 5107 mm (185.3 to 200.9 inches), providing ample interior space for both passengers and cargo. The width measures 1840 mm (72.4 inches), expanding to 2175 mm (85.6 inches) with mirrors opened, ensuring maneuverability while maintaining road presence. Height varies between 1940 mm and 2430 mm (76.4 to 95.7 inches), depending on specific configurations, which also contribute to its outstanding cargo and passenger capacity. The curb weight lies between 1580 kg and 1755 kg (3483 to 3869 lbs), allowing a maximum weight capacity of 2380 kg to 2700 kg (5247 to 5952 lbs), demonstrating the vehicle’s capability to carry heavy loads efficiently. One of the major highlights of the T4 Kombi is its impressive luggage capacity; with rear seats folded, cargo volume ranges from 5400 to 7800 liters (190.6 to 275.5 cubic feet), making it ideal for both commercial use and large family trips. The roof load capacity is 100 kg (220 lbs), adding flexibility for external storage options. Ground clearance stands at 180 mm (7.1 inches), suitable for a variety of road conditions and light off-road use. The vehicle rides on 15-inch rims (6J x 15), fitted with tire options including 195/70 R15 and 205/65 R15, balancing comfort and durability. Overall, the Volkswagen Transporter T4 Kombi facelift from 1996 is a well-rounded and practical van, blending spaciousness with functional design for versatile applications.

Exceptional Features

1996 Volkswagen Transporter Kombi Highlights

Discover the standout features that make the 1996 Volkswagen Transporter Kombi a leader in its class

Engine Options

The 1996 Volkswagen Transporter T4 offered a range of engine choices including petrol and diesel variants, with engines like the 2.5L inline-5 diesel and various inline-4 petrol engines, catering to different performance and efficiency needs.

Facelift Enhancements

The 1996 facelift brought updated front and rear styling including revised headlights, grille, and bumpers, providing a more modern and robust appearance compared to the pre-facelift models.

Versatile Interior

Designed as a Kombi (multi-purpose vehicle), it featured flexible seating arrangements and ample cargo space, making it ideal for both passenger transport and light commercial use.

Improved Suspension

The T4 featured a front independent suspension with coil springs and a rear leaf spring setup, offering a balance between comfort and load-carrying capability.

Safety Features

Safety improvements included options for airbags and anti-lock braking system (ABS), enhancing driver and passenger protection in line with mid-90s automotive safety standards.
Frequently Asked Questions

FAQ

Have a question? Please check our knowledgebase first.

The Volkswagen Transporter (T4 facelift 1996) Kombi comes in various length configurations ranging from 4707 mm to 5107 mm (185.4 to 200.9 inches). This range accounts for different body styles and trim options available during its production run from 1996 to 2003. The longer versions typically offer more interior space for passengers or cargo, making it a versatile van suitable for both commercial and personal use.

The standard width of the Volkswagen Transporter (T4 facelift 1996) Kombi is 1840 mm (72.4 inches). When the side mirrors are opened, the width extends to 2175 mm (85.6 inches). This dimension is important to consider for maneuvering in tight urban environments or when parking in narrow spaces.

The height of the Volkswagen Transporter (T4 facelift 1996) Kombi ranges between 1940 mm and 2430 mm (76.4 to 95.7 inches). The variation depends on the specific roof configuration, with higher roofs providing increased interior standing space and better cargo stacking capacity. This makes the van adaptable for different user needs, from passenger transport to commercial cargo hauling.

The curb weight of the VW Transporter (T4 facelift 1996) Kombi varies between 1580 kg and 1755 kg (3483 to 3868 lbs), depending on the trim and equipment level. The maximum permissible weight ranges from 2380 kg to 2700 kg (5250 to 5952 lbs). This balance allows for a solid payload capability while maintaining manageable driving characteristics and efficiency typical of this generation van.

With the rear seats folded, the Volkswagen Transporter (T4 facelift 1996) Kombi offers a substantial luggage capacity ranging from 5400 liters to 7800 liters (190.7 to 275.5 cubic feet). This expansive cargo volume makes it an excellent choice for transporting bulky goods or equipment, providing flexibility for commercial users and families alike.

The Volkswagen Transporter (T4 facelift 1996) Kombi has a ride height or ground clearance of approximately 180 mm (7.1 inches). This ground clearance level offers a good balance between accessibility for loading and robustness for handling uneven or rough roads, enhancing its versatility for urban and light off-road conditions.

Generally, the Volkswagen Transporter (T4 facelift 1996) Kombi can fit into most standard garages. The width with mirrors folded is 1840 mm (72.4 inches) and height varies up to 2430 mm (95.7 inches) for high roof versions. While the width usually poses no issues for typical garages, the height especially for high-roof configurations might require taller garage entrances or specialized storage. It's advisable to measure your specific garage dimensions to ensure a comfortable fit.

Compared to the previous T3 generation, the T4 facelift (1996) Kombi is generally larger and more modern in dimensions. The length increased to up to 5107 mm (200.9 inches), offering more interior space and cargo capacity. Additionally, the width is slightly wider at 1840 mm (72.4 inches), improving cabin comfort and vehicle stability. The T4 also introduced more advanced engineering, front-engine front-wheel-drive layout, and safety features, marking a substantial evolution over the T3's rear-engine design.

When compared to similar vans from the late 1990s such as the Ford Transit or Mercedes-Benz Vito, the Volkswagen Transporter (T4 facelift 1996) Kombi holds its own predominantly thanks to its versatile size options and generous cargo capacity (5400 to 7800 liters). Although the Ford Transit models often provide longer lengths in some variants, the Transporter’s width and height dimensions offer a good balance between maneuverability and interior space. The T4’s ground clearance of 180 mm is competitive, allowing it to cope with varied road conditions, while its maximum permissible weight up to 2700 kg keeps it suitable for heavier jobs in the light commercial van segment.

The Volkswagen Transporter (T4 facelift 1996) Kombi typically uses rim sizes of 6J x 15 inches, paired with tire sizes of either 195/70 R15 or 205/65 R15. These tire sizes provide a balance of ride comfort, durability, and road grip suitable for both passenger transport and commercial use. The specific choice among these options can depend on trim level, load requirements, and intended driving conditions.
