Volkswagen2004 Volkswagen Caravelle (T5) Dimensions, Size & Specs| Production | |
|---|---|
| Model Year: | 2004 |
| Production Years: | 2003 - 2009 discontinued in 2009 |
Precise measurements of the 2004 Volkswagen Caravelle, engineered for optimal performance and comfort
| Dimensions | |
|---|---|
| Length: | 4890 mm192.5 in16.0 ft |
| Width: | 1904 mm75.0 in6.2 ft |
| Width (Opened Mirrors): | 2242 mm88.3 in7.4 ft |
| Height: | 1959 - 1969 mm77.1 - 77.5 in6.4 - 6.5 ft |
| Ground Clearance: | 165 mm6.5 in0.5 ft |
| Trunk Capacity (Max): | 5800 liter204.8 cu ft |
| Weight Specifications | |
| Curb Weight: | 1850 - 2065 kg4079 - 4553 lbs |
| Maximal permitted Weight: | 2850 - 3000 kg6283 - 6614 lbs |
| Roof Load: | 100 kg220 lbs |
| Tire Specifications | |
| Rims Sizes: | 6.5J x 16, 7J x 17 |
| Tire Sizes: | 205/65 R16 (W:205 | H:65 | D:16) 215/65 R16 (W:215 | H:65 | D:16) 235/55 R17 (W:235 | H:55 | D:17) |

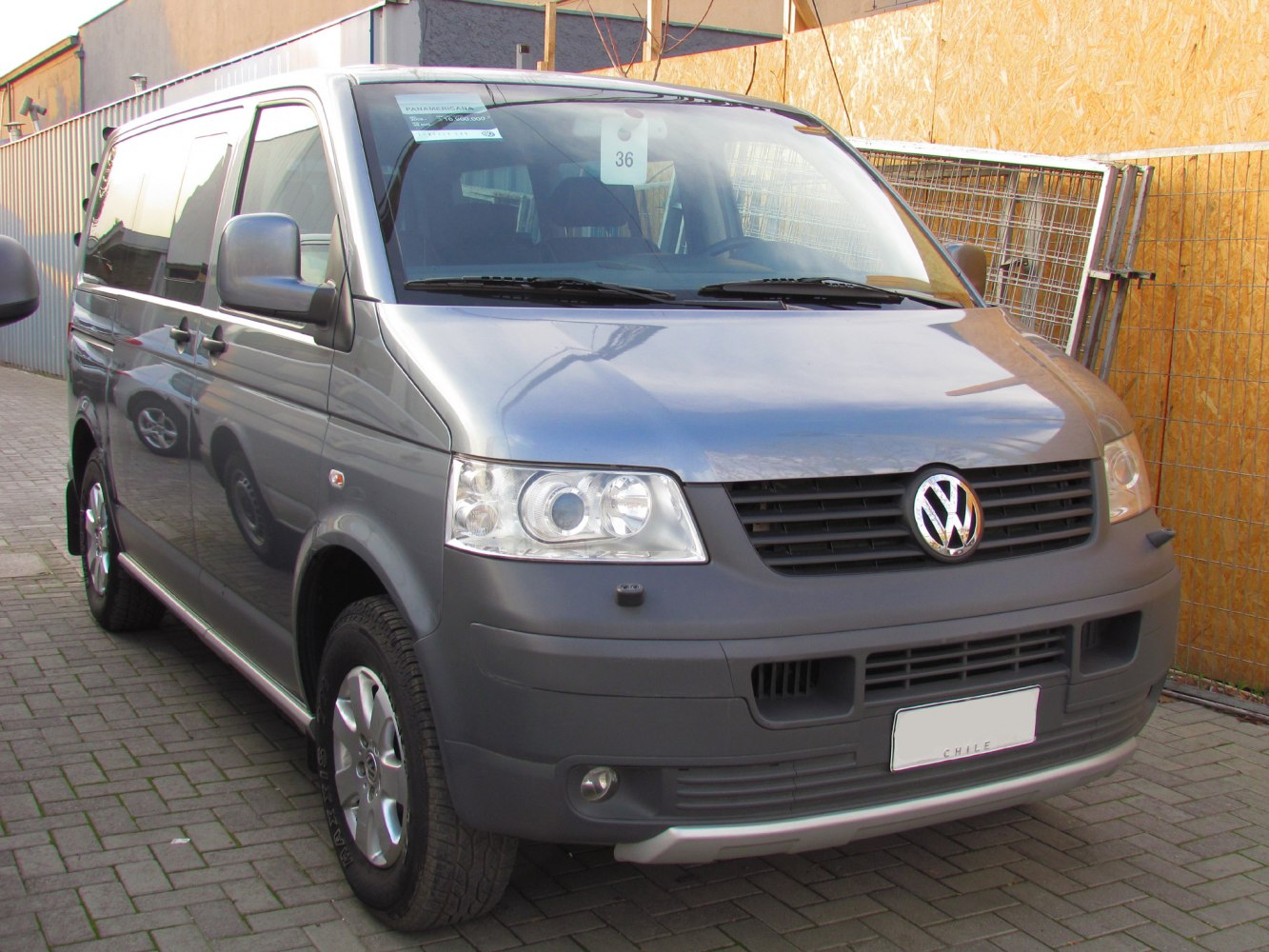

The Volkswagen Caravelle T5, produced between 2003 and 2009 and marketed as the 2004 model year onward, represents a versatile and spacious van option for families, business use, and recreational activities. This generation of the Caravelle is distinguished by its substantial size and practical dimensions, making it one of the prominent large vans in Volkswagen’s lineup during this period.
Measuring 4890 mm (192.5 inches) in length, the T5 Caravelle offers ample interior space suitable for passengers and cargo alike. Its width stands at 1904 mm (75 inches) without mirrors, expanding to 2242 mm (88.3 inches) when including the opened side mirrors. The height varies slightly between 1959 mm (77.1 inches) and 1969 mm (77.5 inches), contributing to a commanding on-road presence and generous headroom inside.
Curb weight ranges from 1850 kg to 2065 kg (4,078 to 4,554 lbs), while the maximum permissible weight spans 2850 kg to 3000 kg (6,283 to 6,614 lbs), underscoring its capability to carry multiple passengers and heavy loads. The van’s ride height or ground clearance is 165 mm (6.5 inches), ensuring reasonable off-road capability and ease of access.
One of the highlights of the Caravelle T5 is its extensive luggage capacity, with up to 5800 liters (204.8 cubic feet) available when the rear seats are folded down—ideal for transporting bulky items or maximizing cargo space during trips. The roof can safely support an additional load of up to 100 kg (220 lbs), allowing for extra transport options such as roof boxes or sports equipment.
The wheel and tire choices reflect a balance between comfort and functionality, including rim sizes of 6.5J x 16 and 7J x 17, matched with tire options such as 205/65 R16, 215/65 R16, and 235/55 R17. These configurations contribute to the van’s stable ride and handling characteristics.
Overall, the Volkswagen Caravelle T5 generation combines robust dimensions with flexible space solutions, suitable for users needing a reliable and spacious van for various professional and personal tasks.
Discover the standout features that make the 2004 Volkswagen Caravelle a leader in its class
Have a question? Please check our knowledgebase first.
The Volkswagen Caravelle (T5) has a length of 4890 mm (192.5 inches), a width of 1904 mm (75 inches) without mirrors, and 2242 mm (88.3 inches) with mirrors open. Its height ranges between 1959 mm to 1969 mm (77.1 to 77.5 inches) depending on the specific configuration. These dimensions define the van's spacious yet maneuverable footprint, well-suited for transporting passengers or cargo.
With its side mirrors opened, the Volkswagen Caravelle (T5) measures 2242 mm (88.3 inches) wide. This increased width is important to consider when parking in narrow spaces or driving through tight urban environments or garages. While the mirrors are essential for safe driving, they require additional clearance overall — so drivers should be cautious to avoid collisions with obstacles like garage walls or parked cars.
The Volkswagen Caravelle (T5) offers a ground clearance or ride height of 165 mm (6.5 inches). This moderate ground clearance makes the van suitable primarily for urban and suburban roads rather than off-road conditions. It allows for easier entry and exit and stability on paved surfaces, but drivers should be mindful of speed bumps or uneven terrain to avoid undercarriage scraping.
The Volkswagen Caravelle (T5) boasts an impressive luggage capacity of 5800 liters (204.8 cubic feet) when the rear seats are folded down. This expansive cargo space makes it highly versatile for transporting bulky items, luggage for group trips, or professional equipment, giving it an edge as a practical van for both personal and commercial use.
The curb weight of the Volkswagen Caravelle (T5) ranges from 1850 to 2065 kilograms (4,079 to 4,554 pounds), depending on the specific trim and equipment. This weight influences the van's handling, acceleration, and braking characteristics. Heavier configurations may feel more stable on highways but could slightly reduce fuel efficiency compared to lighter models.
Considering its length of 4890 mm (192.5 inches) and height of up to 1969 mm (77.5 inches), the Volkswagen Caravelle (T5) fits into many standard residential garages that typically accommodate vehicles up to 5 meters (16.4 feet) long and around 2 meters (6.6 feet) high. However, the width with mirrors opened (2242 mm/88.3 inches) requires slightly wider garage widths or folding mirrors for ease of entry and exit. Homeowners should measure their garage space precisely to ensure comfortable parking.
Compared to its predecessor, the Volkswagen Caravelle (T4), the T5 model is generally larger and more modern in design. The T5's length of 4890 mm (192.5 inches) represents an increase from the T4 generation, which was typically shorter. This contributes to greater interior space and luggage capacity. The T5 also features a wider body and increased height, enhancing passenger comfort and cargo versatility. Overall, the T5 offers a significant dimensional upgrade over the T4, reflecting evolving needs for space and versatility.
When compared with similar vans such as the Ford Transit or Mercedes-Benz Vito from the same era, the Volkswagen Caravelle (T5) stands out for its well-balanced dimensions. Its length of 4890 mm (192.5 inches) and wide cargo capacity of 5800 liters (204.8 cubic feet) place it competitively in the large van segment. While some competitors may offer slightly larger or smaller dimensions depending on configuration, the Caravelle is known for efficient space utilization, strong build quality, and comfortable passenger accommodations, making it a popular choice in the mid-to-large van category.
The Volkswagen Caravelle (T5) comes with rim sizes ranging from 6.5J x 16 inches to 7J x 17 inches, fitted with tires sized 205/65 R16, 215/65 R16, or 235/55 R17. These configurations are designed to deliver a good balance between ride comfort, handling, and durability. Larger rims with wider tires such as the 17-inch options offer improved grip and stability, while the smaller 16-inch tires contribute to a smoother ride over uneven surfaces.
The Volkswagen Caravelle (T5) has a maximum permissible weight ranging from 2850 to 3000 kilograms (6,283 to 6,614 pounds), depending on specific model variants. This maximum weight includes the curb weight plus the load of passengers, cargo, and optional equipment. This relatively high permissible weight allows the Caravelle to carry a substantial payload, making it well-suited for transporting large groups or heavy cargo while maintaining safety and stability.
