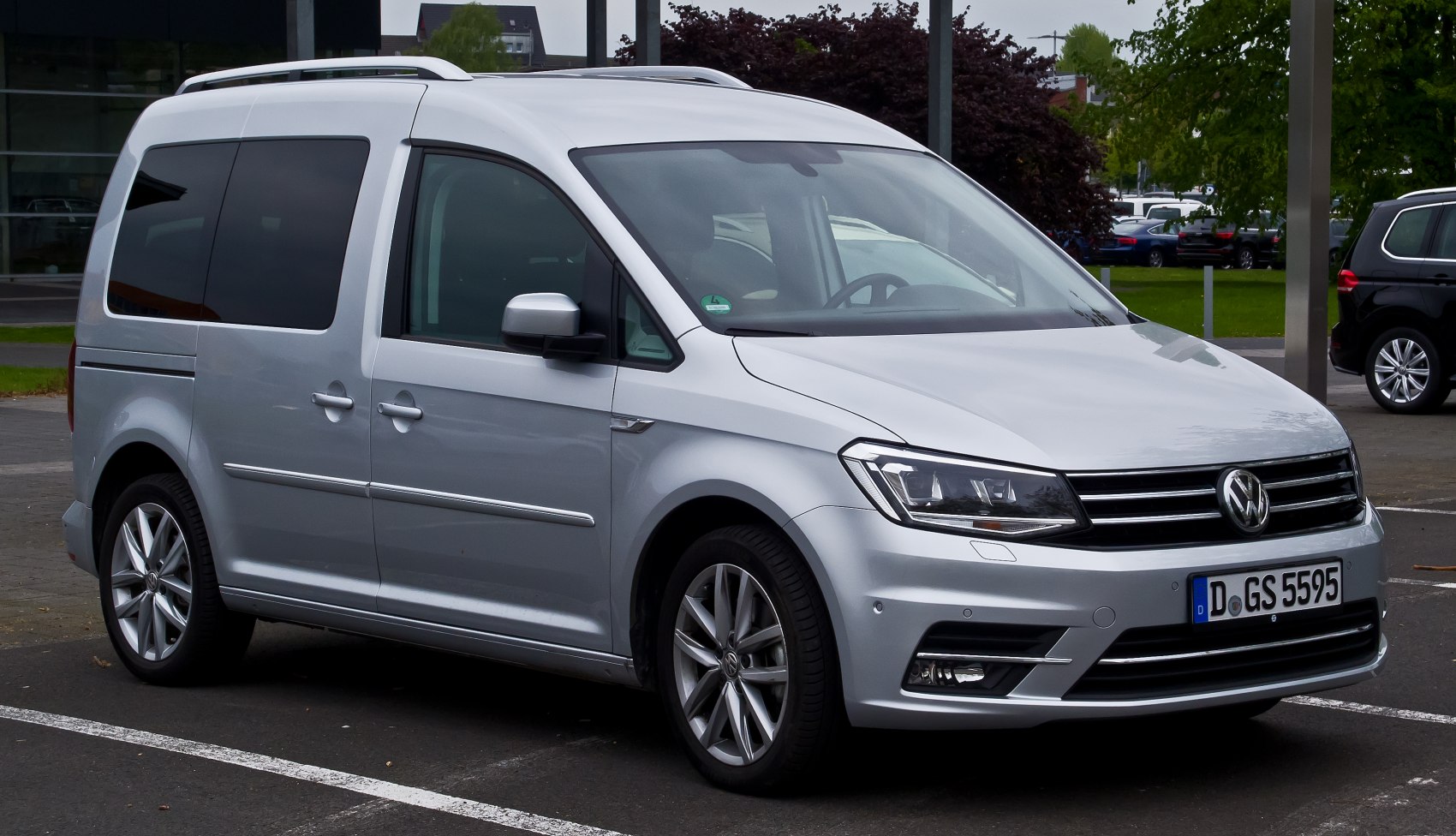

2015 Volkswagen Caddy IV Dimensions, Size & Specs

The curb weight of the Volkswagen Caddy IV ranges from 1267 kg (2793 lbs) to 1515 kg (3340 lbs), depending on the trim level and equipment. The maximum allowed weight, which includes passengers and cargo, varies between 2165 kg (4774 lbs) and 2290 kg (5049 lbs). This range reflects different configurations and payload capacities of this versatile minivan.

The Volkswagen Caddy IV offers a luggage capacity of 190 liters (6.7 cubic feet) with the rear seats in place, which is suitable for daily errands and small loads. When the rear seats are folded down, the luggage capacity expands significantly to between 3030 liters (107 cubic feet) and 3200 liters (113 cubic feet), making it ideal for transporting large items or substantial cargo.

The Volkswagen Caddy IV should fit in most standard garages, but with some considerations. Its height ranges from 1858 mm to 1887 mm (73.1 to 74.3 inches), which is approximately 1.86 to 1.89 meters. Most standard garage heights are around 2.1 to 2.4 meters (82.7 to 94.5 inches), providing sufficient clearance. However, its width with mirrors open is 2079 mm (81.8 inches), which means garage width and mirror folding capability should be considered to avoid damage.

The Volkswagen Caddy IV has a ride height or ground clearance ranging from 123 mm to 155 mm (4.8 to 6.1 inches). This moderate clearance provides a balance between urban usability and light off-road capability. While it is sufficient for uneven city streets, speed bumps, and mild countryside roads, it is not suitable for serious off-roading. The ride height supports comfortable entry and exit while maintaining good driving dynamics.

The Volkswagen Caddy IV comes with rim sizes ranging from 6J x 15 inches to 6J x 16 inches. The tire sizes typically used include 195/65 R15 and 205/55 R16. These tire and rim combinations provide a good balance between ride comfort, fuel efficiency, and handling stability, allowing the minivan to perform reliably across various driving environments.

Compared to the Volkswagen Caddy III, the Caddy IV is generally larger and more modern in design. The Caddy IV measures 4408 mm in length, which is an increase over the Caddy III's approximate length of 4397 mm. Width and height have also increased slightly for enhanced interior space and comfort. These dimensional changes translate into a more spacious cabin and greater cargo capacity while maintaining the practical footprint that made the previous generation popular.

The Volkswagen Caddy IV offers a competitive cargo capacity within the compact minivan segment. Its luggage volume ranges from 190 liters (6.7 cubic feet) with seats up to over 3000 liters (approximately 110 cubic feet) with seats folded, which is on par or superior to many rivals. For example, it exceeds the cargo capacity of some compact MPVs like the Ford Tourneo Connect or the Peugeot Rifter, making it one of the more practical options for both families and light commercial users.

Yes, the Volkswagen Caddy IV is very well-suited for families due to its versatile interior space and practical features. It's a minivan designed to carry up to five or seven passengers depending on configuration. The high roof (up to 1887 mm or 74.3 inches) provides generous headroom, while the flexible seating arrangement and large cargo space make it ideal for transporting children, groceries, sports equipment, and luggage. Additionally, features such as sliding rear doors improve accessibility in tight parking spaces.

The Volkswagen Caddy IV is renowned for its versatility, making it ideal for multiple uses. Families appreciate its spacious and configurable interior for daily commuting, school runs, and travel. Small business owners benefit from its cargo space when transporting tools and goods, especially with the rear seats folded flat. Its moderate size allows easy maneuvering in urban areas while offering a large payload and roof load capacity of 100 kg, making it practical for roof boxes or equipment carriers. Overall, it bridges passenger comfort and cargo utility efficiently.
