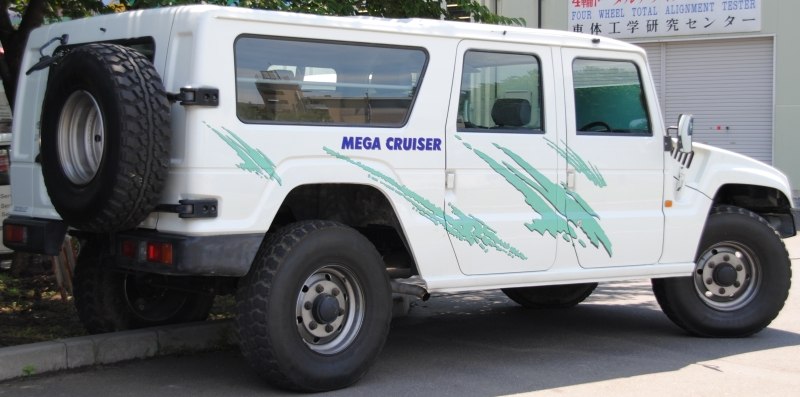

1995 Toyota Mega Cruiser (BXD20) Dimensions, Size & Specs

The Toyota Mega Cruiser stands at a height of 2075 mm (81.7 inches). This elevated stature provides significant ground clearance, which is essential for navigating rough, uneven terrains without damaging the undercarriage. Its height also allows for better approach and departure angles, enhancing off-road performance.

The Mega Cruiser has a curb weight between 2850 and 2900 kilograms (6283 to 6393 lbs). This substantial weight contributes to its durability and ruggedness, offering stability on uneven ground. However, the weight also means the vehicle demands a powerful engine and skilled driving for maneuvering, especially in tight or tricky off-road conditions.

The maximum weight rating for the Mega Cruiser ranges from 3780 to 3830 kilograms (8333 to 8443 lbs). This figure includes the vehicle itself, passengers, cargo, and any additional equipment. Knowing this maximum weight is critical for safety and performance, ensuring the vehicle is not overloaded, which could compromise handling, braking, or off-road abilities.

The standard tire size for the Toyota Mega Cruiser is 37/12.5 R17.5. These large, wide tires are designed to maximize traction on uneven and loose surfaces such as mud, sand, and rock. The 37-inch diameter and wide profile show this vehicle’s purpose-built nature for heavy-duty off-road use, offering improved ground clearance and stability.

The Toyota Mega Cruiser’s size makes fitting into a standard residential garage challenging. With a length of 5090 mm (200.4 inches), width of 2170 mm (85.4 inches), and height of 2075 mm (81.7 inches), it is considerably larger than most typical passenger vehicles. Most standard garages are roughly 2400 mm (8 feet) wide, 5500 mm (18 feet) long, and 2100-2200 mm (7-7.2 feet) tall. While length-wise it might fit in some longer garages, width and height — especially the width — may require wider and taller spaces or specialized garages.

The Toyota Mega Cruiser (BXD20) does not have a direct predecessor as it was introduced as a unique model mainly designed as a military and utility off-road vehicle. Compared to earlier Toyota off-road models like the Toyota Land Cruiser series, the Mega Cruiser is significantly larger and heavier. It offers more substantial off-road capability and load capacity, emphasizing size and durability over the relatively lighter and smaller Land Cruisers.

Dimensionally, the Toyota Mega Cruiser is comparable to large military-grade or utility off-road vehicles like the Hummer H1. Both are wide, tall, and heavy vehicles designed for challenging terrains. The Mega Cruiser’s length of 5.09 meters (200.4 inches) and width of 2.17 meters (85.4 inches) are close to the H1's dimensions, indicating similar size class and off-road focus. However, the Mega Cruiser carries a unique Japanese engineering perspective with differences in styling, interior layout, and specific utility features.

The Toyota Mega Cruiser is designed with a robust frame, heavy-duty suspension, and large off-road tires (37/12.5 R17.5) that contribute to its considerable size and weight (2850-2900 kg curb weight). Its body-on-frame construction supports durability and off-road resilience. Features like significant ground clearance, four-wheel drive, and locking differentials cater to the vehicle’s off-road capabilities, explaining its substantial dimensions and curb weight necessary for stability and rugged performance.

Yes, the Mega Cruiser’s large size and weight can limit its ease of use in everyday urban environments. Manoeuvring such a wide, tall, and heavy vehicle can be challenging, especially in narrow city streets and tight parking spaces. Fuel consumption is also higher due to its size and weight. However, for users needing extreme off-road performance or heavy-duty utility, these trade-offs are acceptable advantages. It excels in rough terrain but may require adjustments for regular road use and parking.
