2016 Renault Scenic IV (Phase I) Dimensions, Size & Specs

Production
Model Year:2016
Production Years:2016 - 2020 discontinued in 2020
1653 mm65.1 in5.4 ft
L: 4406 mm173.5 in14.5 ft | W: 2128 mm83.8 in7.0 ft
Length
4406 mm173.5 in14.5 ft
Width
2128 mm83.8 in7.0 ft
Height
1653 mm65.1 in5.4 ft
Trunk Capacity
506 - 572 liter17.9 - 20.2 cu ft
Technical Details

Exterior Dimensions

Precise measurements of the 2016 Renault Scenic IV, engineered for optimal performance and comfort

Dimensions
Length:4406 mm173.5 in14.5 ft
Width:1866 mm73.5 in6.1 ft
Width (Opened Mirrors):2128 mm83.8 in7.0 ft
Height:1653 mm65.1 in5.4 ft
Ground Clearance:170 mm6.7 in0.6 ft
Trunk Capacity:506 - 572 liter17.9 - 20.2 cu ft
Trunk Capacity (Max):1554 liter54.9 cu ft
Weight Specifications
Curb Weight:1413 - 1710 kg3115 - 3770 lbs
Maximal permitted Weight:1996 - 2200 kg4400 - 4850 lbs
Roof Load:80 kg176 lbs
Tire Specifications
Rims Size:20
Tire Sizes:195/55 R20 95H (W:195 | H:55 | D:20)
195/55 R20 (W:195 | H:55 | D:20)
195 / 55 R20 (W:195 | H:55 | D:20)
Useful Information

About 2016 Renault Scenic IV

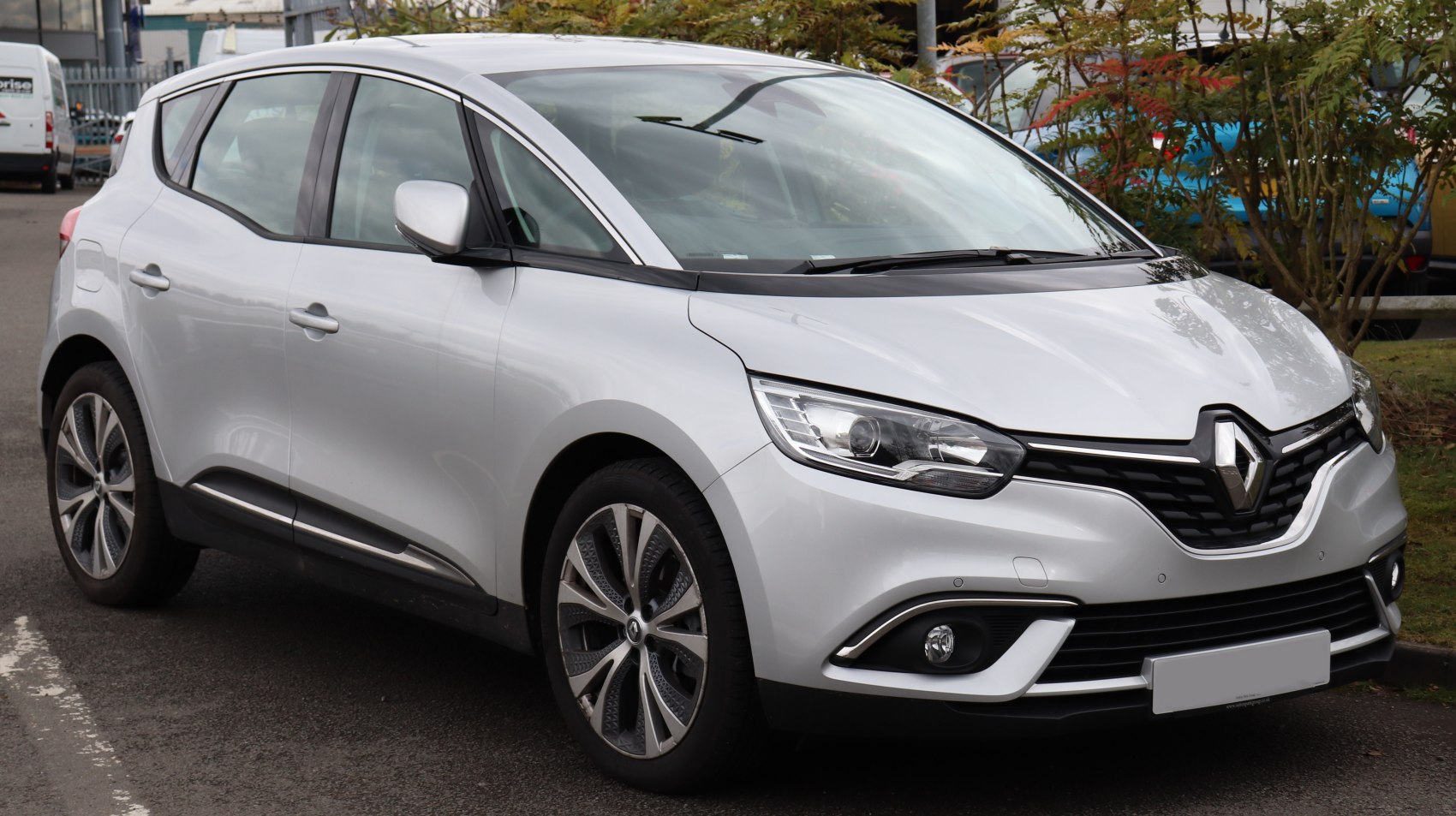

The Renault Scenic IV (Phase I), produced from 2016 to 2020, is a versatile minivan designed to cater to families and those needing a spacious and practical vehicle. This generation of the Scenic offers a balanced combination of compact exterior dimensions with a roomy and flexible interior. Measuring 4,406 mm (173.4 inches) in length and 1,866 mm (73.5 inches) in width without mirrors — expanding to 2,128 mm (83.8 inches) when the mirrors are opened — the Scenic IV provides maneuverability suited for urban environments while maximizing interior space. The vehicle stands at a height of 1,653 mm (65 inches), supporting comfortable headroom and a commanding driving position typical of minivans. The curb weight ranges between 1,413 to 1,710 kg (3,117 to 3,770 lbs), depending on specific trim and options, while the maximum permissible weight spans from 1,996 to 2,200 kg (4,401 to 4,850 lbs), ensuring good load capacity. The luggage space is a notable highlight, offering between 506 and 572 liters (17.9 to 20.2 cubic feet) under normal seating arrangements. When the rear seats are folded flat, this capacity expands substantially to 1,554 liters (54.9 cubic feet), providing ample storage for larger cargo or travel needs. Practical features include a roof load capacity of 80 kg (176 lbs) and a ride height/ground clearance of 170 mm (6.7 inches), which strikes a balance between everyday drivability and versatility on uneven roads. The Scenic IV comes equipped with 20-inch rims paired with 195/55 R20 tires, emphasizing a modern look and enhanced road grip. Overall, the Renault Scenic IV (2016-2020) continues the Scenic line's tradition of blending stylish design, functional space, and comfort in a minivan package well-suited for families and active users alike.

Exceptional Features

2016 Renault Scenic IV Highlights

Discover the standout features that make the 2016 Renault Scenic IV a leader in its class

Engine Options

The 2016 Renault Scenic IV offers a range of petrol and diesel engines, including efficient TCe petrol units and dCi diesel engines, balancing performance with fuel economy.

Innovative Interior Space

Featuring a flexible seating arrangement with sliding and folding rear seats, the Scenic IV provides versatile cargo space and comfort for passengers, enhancing practicality.

Advanced Safety Features

Equipped with multiple airbags, ABS, electronic stability control, and available driver assistance systems such as lane departure warning and automatic emergency braking for enhanced occupant safety.

Multimedia System

Includes the R-Link 2 infotainment system with an 8.7-inch touchscreen, supporting navigation, smartphone integration, Bluetooth connectivity, and voice commands to boost convenience and entertainment.

Efficient Design and Aerodynamics

The Scenic IV sports a modern design with improved aerodynamics, resulting in reduced drag, better fuel efficiency, and a comfortable ride.
Frequently Asked Questions

FAQ

Have a question? Please check our knowledgebase first.

The Renault Scenic IV (Phase I), produced between 2016 and 2020, has a length of 4406 mm (173.4 inches), a width of 1866 mm (73.5 inches), and a height of 1653 mm (65.0 inches). These dimensions place it firmly in the compact minivan category, offering a balance between interior space and maneuverability suitable for urban and suburban driving.

With the side mirrors opened, the Renault Scenic Scenic IV measures 2128 mm (83.8 inches) in width. This dimension is crucial for everyday driving and parking situations, helping drivers understand the full width of their vehicle to avoid obstacles and ensure safe navigation through narrow spaces.

The Renault Scenic IV (Phase I) has a curb weight ranging from 1413 kg to 1710 kg (3116 to 3769 pounds), depending on the trim and equipment. This weight range affects fuel efficiency, handling, and acceleration. A heavier version often includes more features but may slightly reduce fuel economy and agility compared to lighter variants.

The maximum gross weight of the Renault Scenic IV (2016-2020) ranges from 1996 kg to 2200 kg (4401 to 4850 pounds). This figure represents the total maximum weight of the vehicle, including passengers, cargo, and fuel. Staying within this limit is vital for vehicle safety, performance, and legal compliance.

The Renault Scenic IV offers a luggage capacity of 506 to 572 liters (17.9 to 20.2 cubic feet) with the rear seats upright. When the rear seats are folded down, the capacity significantly increases to 1554 liters (54.9 cubic feet), providing ample room for larger cargo and enhancing the vehicle's versatility for family use and transport.

The Renault Scenic IV (2016-2020) has a ride height or ground clearance of 170 mm (6.7 inches). This clearance helps the vehicle handle uneven road surfaces, speed bumps, and minor obstacles, making it practical for city driving and light off-road conditions without compromising stability or comfort.

Yes, the Renault Scenic IV fits comfortably into a standard residential garage. Given its width with mirrors folded at 1866 mm (73.5 inches) and length of 4406 mm (173.4 inches), it should clear most typical garage door dimensions. The height of 1653 mm (65.0 inches) is also well within standard garage space heights, allowing for easy storage without modifications.

Compared to the Scenic III, the Renault Scenic IV (2016-2020) is slightly longer and wider, offering improved interior space and cargo capacity. The increase in width and refined design also contributes to better road presence and stability. Height and ground clearance remain fairly consistent, while the luggage capacity has been optimized to enhance versatility and practicality.

The Renault Scenic IV is competitively sized in the compact minivan segment. Its dimensions and luggage capacity position it well against rivals like the Volkswagen Touran and Ford C-Max. While slightly wider than some competitors, its interior packaging and flexible cargo solutions provide a compelling balance of comfort and utility for families.

The Renault Scenic IV comes with 20-inch rims, fitted primarily with 195/55 R20 tires. These tire dimensions contribute to a smooth ride experience, improved handling, and better grip on the road. The relatively low profile tires also enhance the vehicle’s sporty aesthetics while maintaining sufficient tire sidewall for comfort over road imperfections.
