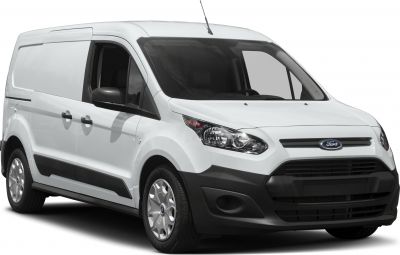

2014 Ford Transit Connect II Wagon L1 Dimensions, Size & Specs

The curb weight of the 2014 Ford Transit Connect II Wagon L1 ranges from 1415 kg to 1533 kg (approximately 3122 to 3378 lbs). The maximum allowable weight, also known as the gross vehicle weight rating (GVWR), is between 2200 and 2300 kg (4850 to 5071 lbs). Curb weight refers to the weight of the vehicle without passengers or cargo but with a full tank of fuel, while the maximum weight indicates the highest total weight including passengers, cargo, and fluids permitted for safe operation.

The standard luggage compartment of the Ford Transit Connect II Wagon L1 offers a capacity of 1029 liters (36.3 cubic feet) behind the rear seats. When the rear seats are folded down, the cargo space nearly doubles, expanding to 2003 liters (70.7 cubic feet). This significant increase in cargo capacity makes the Transit Connect highly versatile for transporting larger items or more luggage, catering well to both family use and commercial applications.

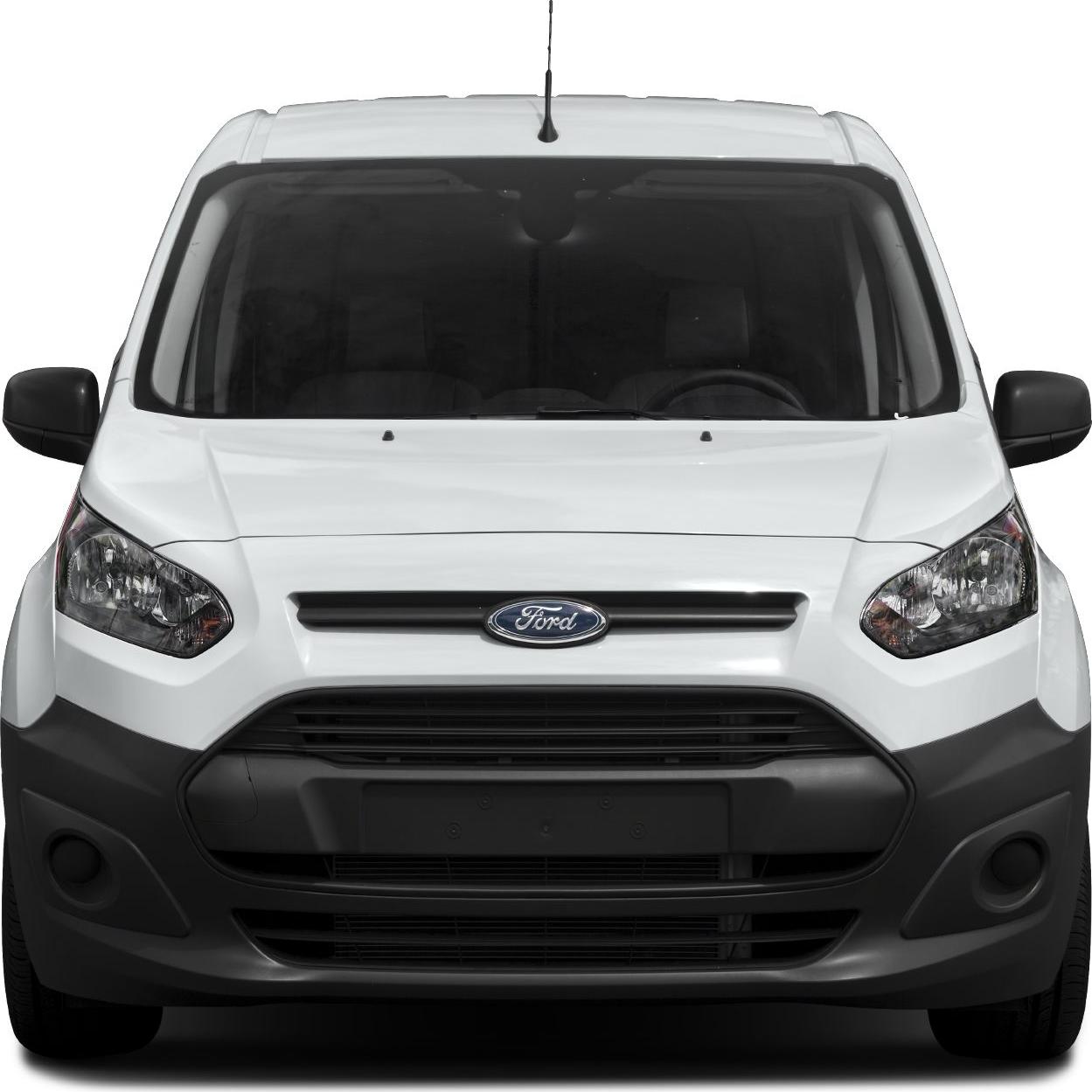

The 2014 Transit Connect II Wagon L1 has a width of approximately 1966 mm (77.4 inches) with the side mirrors folded. When the mirrors are opened, the width expands to about 2137 mm (84.1 inches). These measurements are crucial for understanding the vehicle's clearance requirements in narrow spaces such as tight parking spots, garages, or urban streets. Drivers need to consider these widths when navigating tight areas to avoid mirror damage or collisions.

Most standard residential garages range in width from about 2400 mm (94.5 inches) to 3000 mm (118 inches) and have a minimum height clearance around 2130 mm (84 inches). The Transit Connect II Wagon L1, with a maximum width of 2137 mm (84.1 inches) including opened mirrors and a height of up to 1844 mm (72.6 inches), will fit comfortably inside most standard garages. However, drivers should fold the mirrors in to ensure extra clearance and ease in maneuvering within the garage space.

The Ford Transit Connect II Wagon L1 has a ride height, or ground clearance, ranging from 140 mm to 153 mm (5.5 to 6.0 inches). This relatively low ground clearance is typical for a minivan prioritizing on-road comfort and handling over off-road capability. While it's adequate for most urban and highway conditions, drivers should be cautious on rough terrain or steep driveways to avoid scraping the underside.

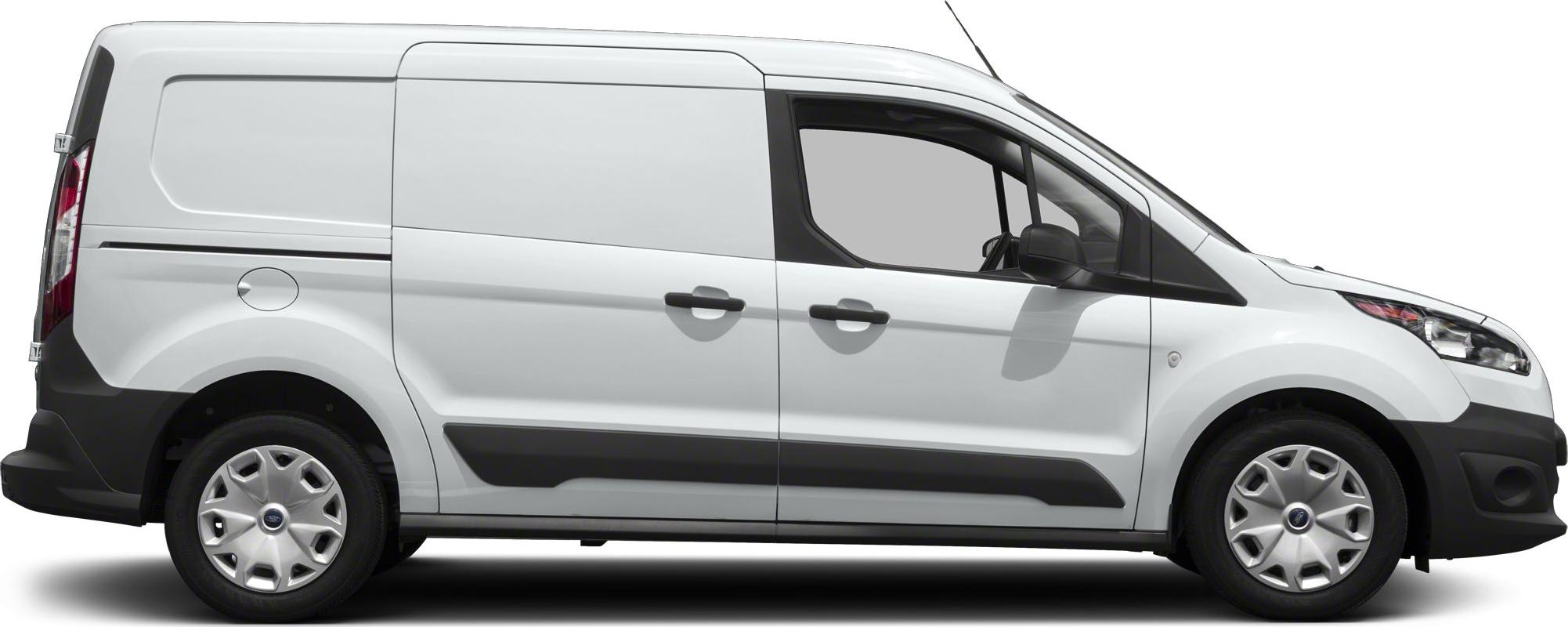

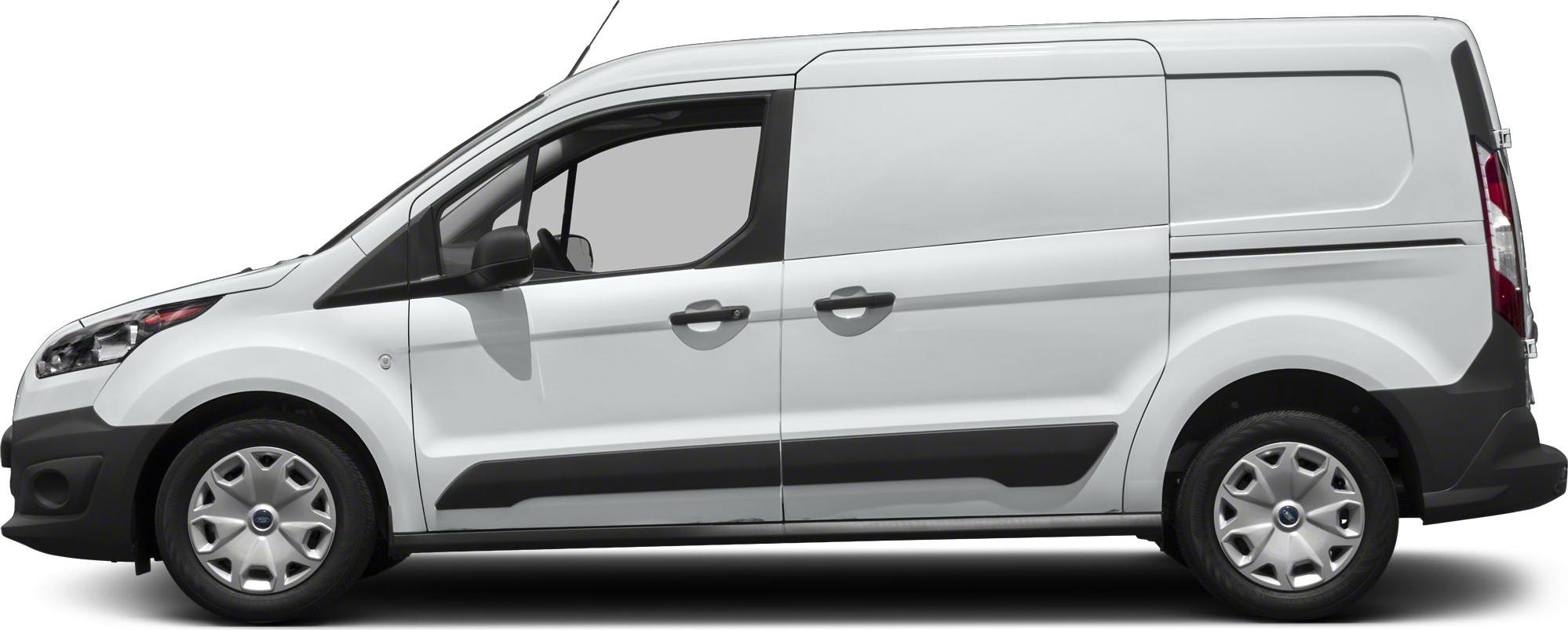

Compared to the first-generation Transit Connect, the 2014 second-generation Wagon L1 offers a slightly larger and more refined package. The Transit Connect II Wagon L1 is longer at 4418 mm (173.9 inches), compared to roughly 4304 mm (169.4 inches) for the older model, providing more interior space and improved cargo capacity. Width and height saw modest increases, contributing to a roomier cabin and enhanced comfort. Additionally, the second generation introduced more modern styling, better materials, and improved ride quality, making it a noticeable upgrade over its predecessor.

When compared to other compact vans and small minivans like the Nissan NV200 or the Ram ProMaster City, the Transit Connect II Wagon L1 holds a competitive position in terms of size. Its length of 4418 mm (173.9 inches) is slightly longer than competitors like the Nissan NV200, which measures about 4390 mm (172.8 inches). The Transit Connect's width (1834-1835 mm or 72.2 inches) is comparable but can be wider when mirrors are open. Its cargo capacity with seats folded (2003 liters/70.7 cubic feet) is competitive, offering excellent versatility for both commercial and personal use. Overall, it strikes a solid balance between maneuverability and interior volume.

The 2014 Ford Transit Connect II Wagon L1 comes equipped with 16-inch rims sized at 6.5J x 16. The standard tire sizes for this generation include 215/55 R16 and 205/60 R16. These tire and rim sizes balance ride comfort and handling while supporting the vehicle's load capacity and dimensions efficiently.

The Ford Transit Connect II Wagon L1 is designed as a versatile minivan fitting a wide range of users. It appeals to small business owners needing cargo space with easy maneuverability, as well as families seeking a practical vehicle with flexible seating and generous luggage capacity. Its compact exterior dimensions make it suitable for urban driving and parking, while the large interior volume and impressive cargo capacity accommodate a variety of needs. Produced between 2013 and 2018, this model is appreciated for its combination of utility, efficiency, and comfort.
