2010 Ford Transit Connect I (facelift 2009) Crew Van L1H1 Dimensions, Size & Specs

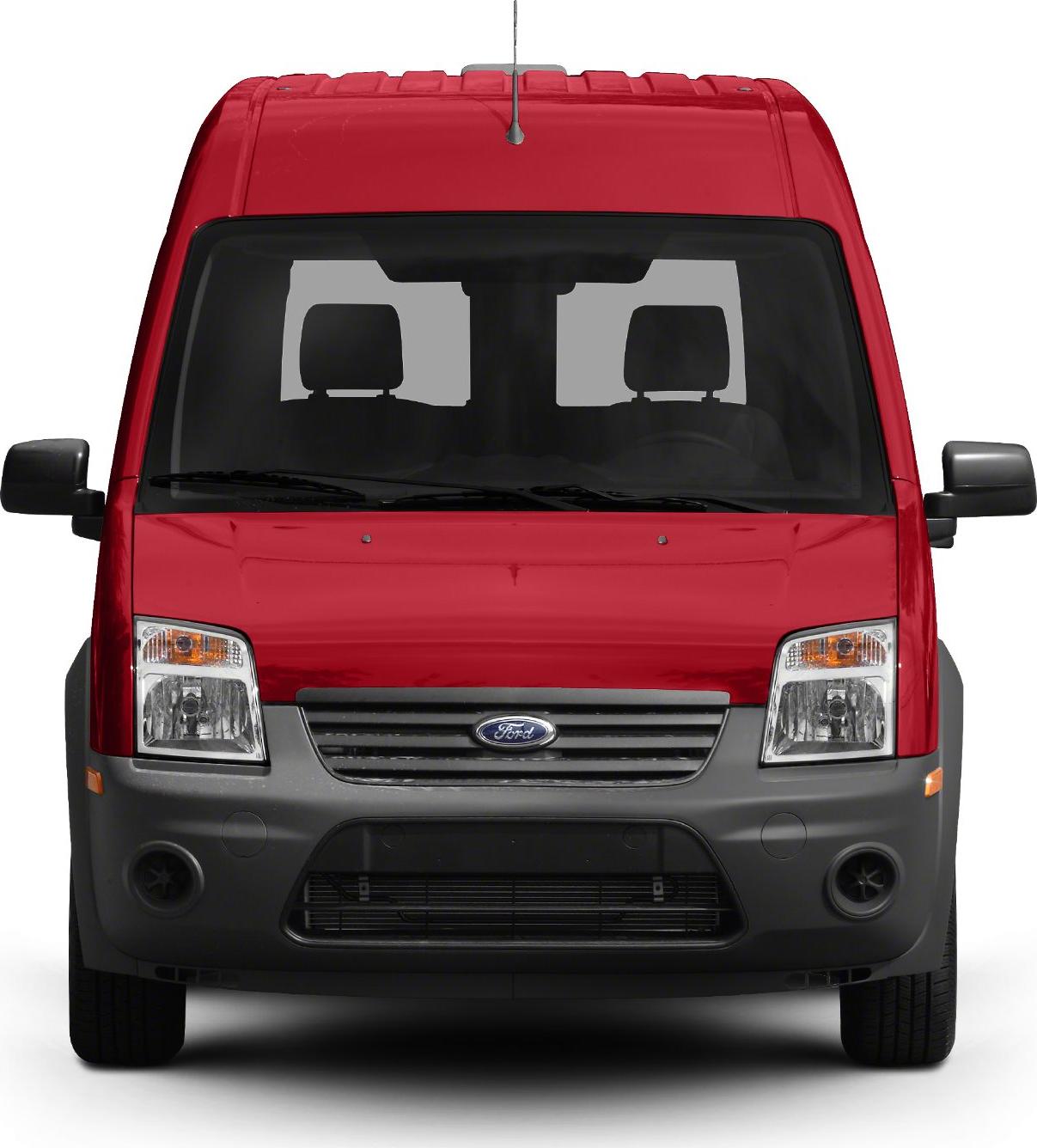

With the mirrors opened, the width of the 2010 Ford Transit Connect Crew Van increases to 2044 mm (80.5 inches) from the closed width of 1795 mm (70.7 inches). This expanded width means that extra care is needed when parking or driving through narrow spaces. It can affect tight garages, parking lots, or narrow streets since the vehicle becomes wider by nearly 25 cm (9.8 inches). Drivers should be mindful of this when assessing fit to avoid mirror damage or scrapes, especially in congested urban environments.

The 2010 Ford Transit Connect I (facelift 2009) Crew Van L1H1 offers a ground clearance of 166 mm (6.5 inches). This ride height is moderate and typical for urban minivans, ensuring a balance between easy entry and exit and the ability to handle moderately rough or uneven surfaces without scraping the underside. While it is not designed for off-roading, the clearance allows safe navigation over speed bumps, uneven parking lots, and minor road debris commonly encountered in city driving.

The curb weight of the 2010 Ford Transit Connect I (facelift 2009) Crew Van L1H1 ranges from 1506 to 1517 kg (3320 to 3345 lbs), while its maximum allowable weight is 2240 kg (4938 lbs). This means the vehicle can carry a considerable payload capacity of around 723 to 734 kg (1594 to 1618 lbs) when accounting for passengers and cargo combined. This makes it a capable light commercial vehicle suitable for deliveries, small cargo transport, or tradespeople needing both passenger and cargo space. However, it is important to not exceed the max weight rating to maintain safety and vehicle performance.

The 2010 Ford Transit Connect Crew Van offers 1400 liters (49.4 cubic feet) of luggage capacity with the rear seats in place, which is already substantial for a compact minivan. When the rear seats are folded down, this capacity nearly doubles to 2600 liters (91.8 cubic feet), allowing for significantly more cargo space. This versatility enables it to switch flexibly between passenger transport and hauling larger or bulkier items, making it ideal for small businesses, family outings, or moving equipment.

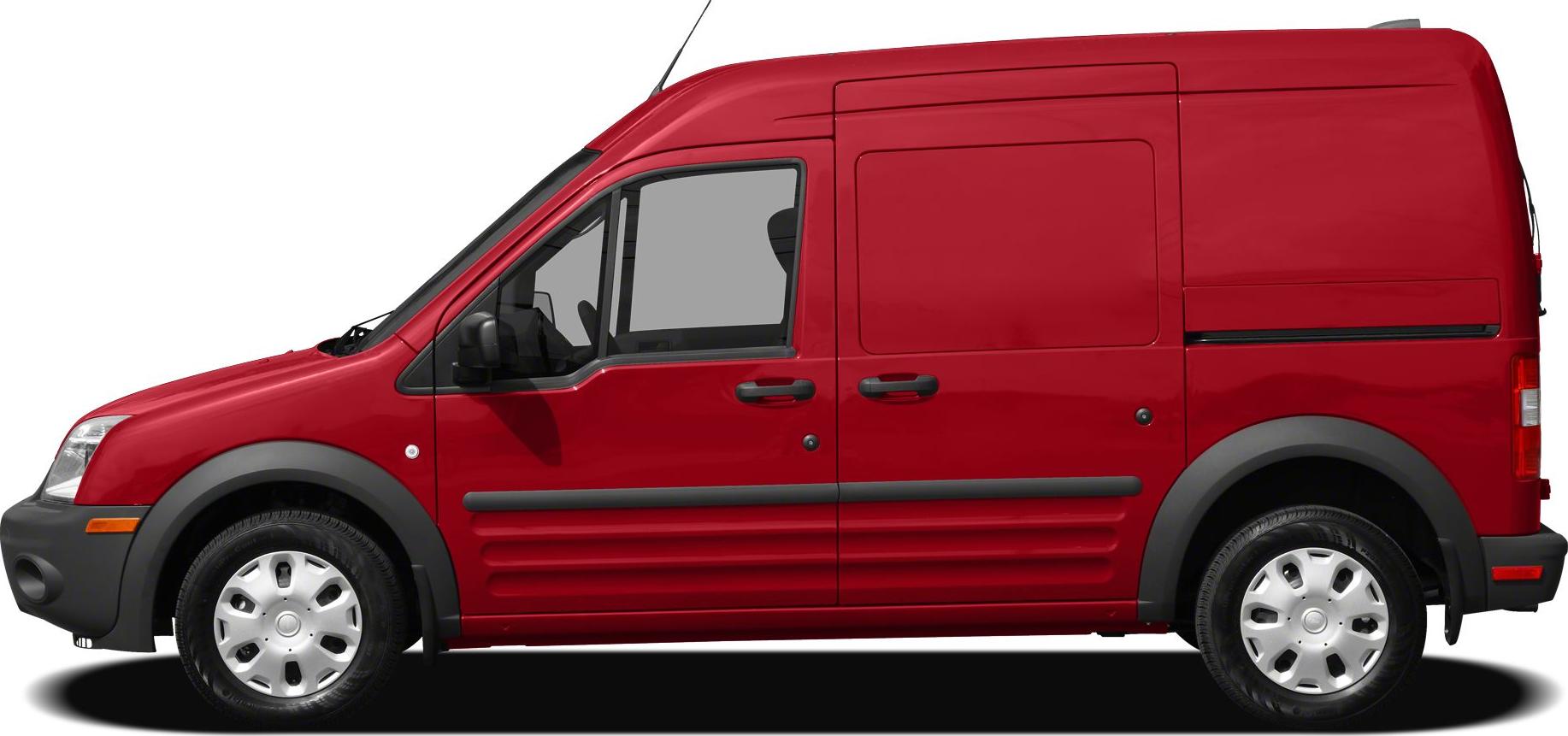

The 2010 Ford Transit Connect I Crew Van L1H1, with a length of 4275 mm (168.3 inches), width of 1795 mm (70.7 inches), and height of 1815 mm (71.5 inches), fits into most standard residential garages without issue. Typical garage dimensions are approximately 6100 mm (240 inches) long and 3000 mm (118 inches) wide, which comfortably accommodate this vehicle’s footprint. However, its height of 1815 mm (71.5 inches) is something to verify against garages with low-clearance doors or overhead obstacles to ensure no risk of damage when entering or exiting.

Compared to the initial pre-facelift Transit Connect models, the 2010 facelift version maintained similar overall dimensions with minor updates for aesthetics and aerodynamics. The length remains close to 4275 mm (168.3 inches), width around 1795 mm (70.7 inches), and height approximately 1815 mm (71.5 inches). These incremental changes improved certain aspects like refined exterior styling and slightly optimized interior space without significantly altering its footprint. The consistency in dimensions ensured the vehicle retained its established balance of cargo capacity and city maneuverability compared to earlier versions.

The 2010 Ford Transit Connect I Crew Van L1H1 stands out in the compact minivan segment by offering a practical balance of size and cargo capacity. Compared to competitors like the Volkswagen Caddy or Ram ProMaster City, it is similar in length and width but often offers a competitive luggage capacity of up to 2600 liters (91.8 cubic feet) with seats folded. Its ground clearance and payload capacity are also comparable, making it a versatile choice for urban delivery, small business, or family use. Additionally, the Ford brand’s service network and parts availability often add value over rivals.

The 2010 Ford Transit Connect I (facelift 2009) Crew Van L1H1 comes equipped with 6J x 15 rim sizes fitted with tires sized 195/65 R15. This tire and rim combination offers a good balance between comfort and stability, suitable for the vehicle’s typical urban and light commercial use. The 15-inch rims allow for a moderately sized tire profile (aspect ratio 65), which helps absorb road bumps for a comfortable ride, while providing enough sidewall to handle the payload without compromising handling precision. This setup supports stable steering and braking performance under various load conditions.

The 2010 Ford Transit Connect I (facelift 2009) Crew Van L1H1 is a versatile compact minivan designed primarily for commercial purposes but also suited for multipurpose family and cargo transport. It features practical dimensions for city environments, spacious interiors with fold-flat rear seats, and a respectable payload capacity of up to around 730 kg. The facelift brought updated styling and minor improvements in efficiency and comfort. Its compact size combined with flexible cargo/passenger configurations makes it popular with small business owners, tradespeople, and families needing a practical, manageable vehicle.
