The Ford Transit Connect is a compact panel van designed primarily for commercial use, offering a versatile cargo and passenger configuration. Introduced in 2002, the model has evolved through three generations, enhancing size, design, and technology with each iteration. The first generation focused on compactness and efficiency, while later generations expanded interior space and modernized features to meet diverse business needs. Renowned for its maneuverability and practical cargo capacity, the Ford Transit Connect remains a popular choice for small businesses and urban delivery services worldwide.

You can click on any letter below to filter and display car generations that start with that letter.

Current Generations

2024 Ford Transit Connect III FlexCab L1

2024 Ford Transit Connect III FlexCab L1 Preview
1833 mm
L:4515 mm | W:2100 mm

2024 Ford Transit Connect III FlexCab L1

    Current Model
  • Production: 2024-present
  • Model Year: 2024
Body Style: Minivan
  • Length: 4500-4515 mm177.2-177.8 in
  • Width: 2100 mm82.7 in
  • Height: 1833 mm72.2 in
  • Trunk Capacity: 2500 liter88.3 cu ft

2024 Ford Transit Connect III FlexCab L2

2024 Ford Transit Connect III FlexCab L2 Preview
1835 mm
L:4868 mm | W:2100 mm

2024 Ford Transit Connect III FlexCab L2

    Current Model
  • Production: 2024-present
  • Model Year: 2024
Body Style: Minivan
  • Length: 4853-4868 mm191.1-191.7 in
  • Width: 2100 mm82.7 in
  • Height: 1835 mm72.2 in
  • Trunk Capacity: 3100 liter109.5 cu ft

2024 Ford Transit Connect III Panel Van L1

2024 Ford Transit Connect III Panel Van L1 Preview
1856 mm
L:4500 mm | W:2100 mm

2024 Ford Transit Connect III Panel Van L1

    Current Model
  • Production: 2024-present
  • Model Year: 2024
Body Style: Minivan
  • Length: 4500 mm177.2 in
  • Width: 2100 mm82.7 in
  • Height: 1856 mm73.1 in
  • Trunk Capacity: 3100 liter109.5 cu ft

2024 Ford Transit Connect III Panel Van L2

Gray panel van with sliding side door and modern front grille
1860 mm
L:4853 mm | W:2100 mm

2024 Ford Transit Connect III Panel Van L2

    Current Model
  • Production: 2024-present
  • Model Year: 2024
Body Style: Minivan
  • Length: 4853 mm191.1 in
  • Width: 2100 mm82.7 in
  • Height: 1860 mm73.2 in
  • Trunk Capacity: 3700 liter130.7 cu ft

Discontinued Generations

2019 Ford Transit Connect II (facelift 2018) Double Cab-in-Van L1

Side profile of white panel van with double cab and black trim
1830 mm
L:4425 mm | W:2137 mm

2019 Ford Transit Connect II (facelift 2018) Double Cab-in-Van L1

    Discontinued Model
  • Production: 2018-2024
  • Model Year: 2019
Body Style: Minivan
  • Length: 4425 mm174.2 in
  • Width: 2137 mm84.1 in
  • Height: 1819-1830 mm71.6-72.0 in
  • Trunk Capacity: 1200 liter42.4 cu ft

2019 Ford Transit Connect II (facelift 2018) Double Cab-in-Van L2

Side profile of a double cab-in-van with detailed doors and wheels
1820 mm
L:4825 mm | W:2137 mm

2019 Ford Transit Connect II (facelift 2018) Double Cab-in-Van L2

    Discontinued Model
  • Production: 2018-2024
  • Model Year: 2019
Body Style: Minivan
  • Length: 4825 mm190.0 in
  • Width: 2137 mm84.1 in
  • Height: 1820 mm71.7 in
  • Trunk Capacity: 1600 liter56.5 cu ft

2019 Ford Transit Connect II (facelift 2018) Panel Van L1

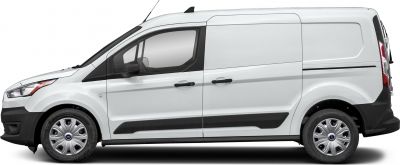

Side profile of white panel van with sliding doors and black trim
1830 mm
L:4425 mm | W:2137 mm

2019 Ford Transit Connect II (facelift 2018) Panel Van L1

    Discontinued Model
  • Production: 2018-2024
  • Model Year: 2019
Body Style: Minivan
  • Length: 4425 mm174.2 in
  • Width: 2137 mm84.1 in
  • Height: 1830 mm72.0 in
  • Trunk Capacity: 2600 liter91.8 cu ft
  • Trunk Capacity (Max): 3700 liter130.7 cu ft

2019 Ford Transit Connect II (facelift 2018) Panel Van L2

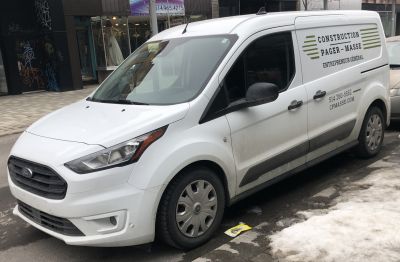

White panel van with construction signage on the side, parked in an urban setting.
1847 mm
L:4825 mm | W:2137 mm

2019 Ford Transit Connect II (facelift 2018) Panel Van L2

    Discontinued Model
  • Production: 2018-2024
  • Model Year: 2019
Body Style: Minivan
  • Length: 4825 mm190.0 in
  • Width: 2137 mm84.1 in
  • Height: 1828-1847 mm72.0-72.7 in
  • Trunk Capacity: 3200 liter113.0 cu ft
  • Trunk Capacity (Max): 4400 liter155.4 cu ft

2019 Ford Transit Connect II (facelift 2018) Wagon L1

Side profile of a compact panel van with modern styling
1844 mm
L:4425 mm | W:2137 mm

2019 Ford Transit Connect II (facelift 2018) Wagon L1

    Discontinued Model
  • Production: 2018-2024
  • Model Year: 2019
Body Style: Minivan
  • Length: 4425 mm174.2 in
  • Width: 2137 mm84.1 in
  • Height: 1819-1844 mm71.6-72.6 in
  • Trunk Capacity: 1000 liter35.3 cu ft
  • Trunk Capacity (Max): 1800 liter63.6 cu ft

2019 Ford Transit Connect II (facelift 2018) Wagon L2

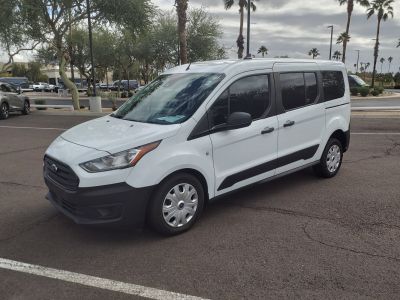

Front-side view of compact white van with black bumpers and tinted windows
1820 mm
L:4825 mm | W:2137 mm

2019 Ford Transit Connect II (facelift 2018) Wagon L2

    Discontinued Model
  • Production: 2018-2024
  • Model Year: 2019
Body Style: Minivan
  • Length: 4825 mm190.0 in
  • Width: 2137 mm84.1 in
  • Height: 1820 mm71.7 in
  • Trunk Capacity: 300 liter10.6 cu ft
  • Trunk Capacity (Max): 2800 liter98.9 cu ft

2014 Ford Transit Connect II Double Cab-in-Van L1

Front view with prominent headlights and black grille
1836 mm
L:4418 mm | W:2137 mm

2014 Ford Transit Connect II Double Cab-in-Van L1

    Discontinued Model
  • Production: 2013-2018
  • Model Year: 2014
Body Style: Minivan
  • Length: 4418 mm173.9 in
  • Width: 2137 mm84.1 in
  • Height: 1836 mm72.3 in
  • Trunk Capacity: 1200 liter42.4 cu ft
  • Trunk Capacity (Max): 2200 liter77.7 cu ft

2014 Ford Transit Connect II Double Cab-in-Van L2

White double cab panel van with black bumper and side sliding door
1839 mm
L:4818 mm | W:2137 mm

2014 Ford Transit Connect II Double Cab-in-Van L2

    Discontinued Model
  • Production: 2013-2018
  • Model Year: 2014
Body Style: Minivan
  • Length: 4818 mm189.7 in
  • Width: 2137 mm84.1 in
  • Height: 1828-1839 mm72.0-72.4 in
  • Trunk Capacity: 1600 liter56.5 cu ft
  • Trunk Capacity (Max): 2800 liter98.9 cu ft

2014 Ford Transit Connect II Panel Van L1

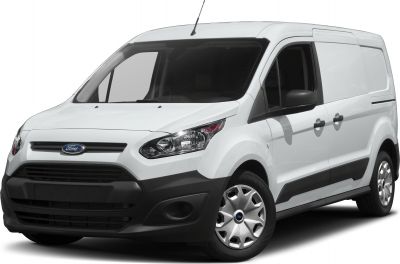

Front angled view of compact panel van with distinctive headlights
1861 mm
L:4418 mm | W:2137 mm

2014 Ford Transit Connect II Panel Van L1

    Discontinued Model
  • Production: 2013-2018
  • Model Year: 2014
Body Style: Minivan
  • Length: 4418 mm173.9 in
  • Width: 2137 mm84.1 in
  • Height: 1842-1861 mm72.5-73.3 in
  • Trunk Capacity: 2630 liter92.9 cu ft
  • Trunk Capacity (Max): 3700 liter130.7 cu ft

2014 Ford Transit Connect II Panel Van L2

Front side view of white panel van with distinct headlights and black bumper
1862 mm
L:4818 mm | W:2137 mm

2014 Ford Transit Connect II Panel Van L2

    Discontinued Model
  • Production: 2013-2018
  • Model Year: 2014
Body Style: Minivan
  • Length: 4818 mm189.7 in
  • Width: 2137 mm84.1 in
  • Height: 1849-1862 mm72.8-73.3 in
  • Trunk Capacity: 3220 liter113.7 cu ft
  • Trunk Capacity (Max): 4400 liter155.4 cu ft

2014 Ford Transit Connect II Wagon L1

White compact van with black grille, trim, and hubcaps
1844 mm
L:4418 mm | W:2137 mm

2014 Ford Transit Connect II Wagon L1

    Discontinued Model
  • Production: 2013-2018
  • Model Year: 2014
Body Style: Minivan
  • Length: 4418 mm173.9 in
  • Width: 2137 mm84.1 in
  • Height: 1836-1844 mm72.3-72.6 in
  • Trunk Capacity: 1029 liter36.3 cu ft
  • Trunk Capacity (Max): 2003 liter70.7 cu ft

2014 Ford Transit Connect II Wagon L2

Compact white commercial van front and side view with black trim
1840 mm
L:4818 mm | W:2137 mm

2014 Ford Transit Connect II Wagon L2

    Discontinued Model
  • Production: 2013-2018
  • Model Year: 2014
Body Style: Minivan
  • Length: 4818 mm189.7 in
  • Width: 2137 mm84.1 in
  • Height: 1828-1840 mm72.0-72.4 in
  • Trunk Capacity: 322 liter11.4 cu ft
  • Trunk Capacity (Max): 2761 liter97.5 cu ft

2010 Ford Transit Connect I (facelift 2009) Crew Van L1H1

Side profile of a compact crew van with utility features
1815 mm
L:4275 mm | W:2044 mm

2010 Ford Transit Connect I (facelift 2009) Crew Van L1H1

    Discontinued Model
  • Production: 2009-2013
  • Model Year: 2010
Body Style: Minivan
  • Length: 4275 mm168.3 in
  • Width: 2044 mm80.5 in
  • Height: 1815 mm71.5 in
  • Trunk Capacity: 1400 liter49.4 cu ft
  • Trunk Capacity (Max): 2600 liter91.8 cu ft

2010 Ford Transit Connect I (facelift 2009) Crew Van L2H2

Side profile of a crew van with extended roof and sliding side door
2014 mm
L:4587 mm | W:2113 mm

2010 Ford Transit Connect I (facelift 2009) Crew Van L2H2

    Discontinued Model
  • Production: 2009-2013
  • Model Year: 2010
Body Style: Minivan
  • Length: 4525-4587 mm178.1-180.6 in
  • Width: 2044-2113 mm80.5-83.2 in
  • Height: 1980-2014 mm78.0-79.3 in
  • Trunk Capacity: 2100-2220 liter74.2-78.4 cu ft
  • Trunk Capacity (Max): 3361-3400 liter118.7-120.1 cu ft

2010 Ford Transit Connect I (facelift 2009) Panel Van L1H1

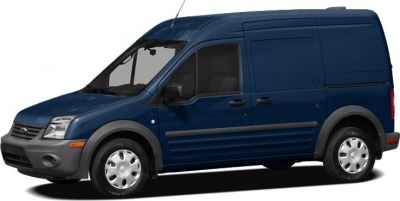

Blue panel van with black side trim and compact cargo design.
1815 mm
L:4275 mm | W:2044 mm

2010 Ford Transit Connect I (facelift 2009) Panel Van L1H1

    Discontinued Model
  • Production: 2009-2013
  • Model Year: 2010
Body Style: Minivan
  • Length: 4275 mm168.3 in
  • Width: 2044 mm80.5 in
  • Height: 1815 mm71.5 in
  • Trunk Capacity: 2800 liter98.9 cu ft
  • Trunk Capacity (Max): 3400 liter120.1 cu ft

2010 Ford Transit Connect I (facelift 2009) Panel Van L2H2

Side profile of a high-roof panel van with sliding door
2014 mm
L:4587 mm | W:2113 mm

2010 Ford Transit Connect I (facelift 2009) Panel Van L2H2

    Discontinued Model
  • Production: 2009-2013
  • Model Year: 2010
Body Style: Minivan
  • Length: 4525-4587 mm178.1-180.6 in
  • Width: 2044-2113 mm80.5-83.2 in
  • Height: 1980-2014 mm78.0-79.3 in
  • Trunk Capacity: 3670-3700 liter129.6-130.7 cu ft
  • Trunk Capacity (Max): 4300 liter151.9 cu ft

2007 Ford Transit Connect I (facelift 2006) Panel Van L1H1

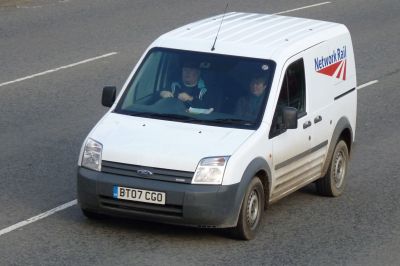

Compact white panel van with front grille and rectangular headlights
1814 mm
L:4308 mm | W:2044 mm

2007 Ford Transit Connect I (facelift 2006) Panel Van L1H1

    Discontinued Model
  • Production: 2006-2009
  • Model Year: 2007
Body Style: Minivan
  • Length: 4308 mm169.6 in
  • Width: 2044 mm80.5 in
  • Height: 1814 mm71.4 in
  • Trunk Capacity: 2800 liter98.9 cu ft
  • Trunk Capacity (Max): 3400 liter120.1 cu ft

2007 Ford Transit Connect I (facelift 2006) Panel Van L2H2

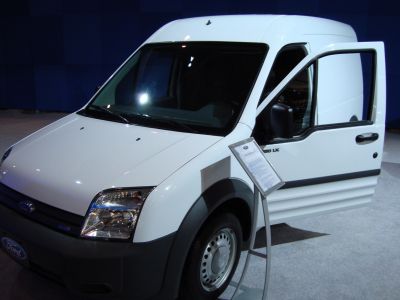

Front-side view, open door, distinctive headlights
1981 mm
L:4555 mm | W:2044 mm

2007 Ford Transit Connect I (facelift 2006) Panel Van L2H2

    Discontinued Model
  • Production: 2006-2009
  • Model Year: 2007
Body Style: Minivan
  • Length: 4555 mm179.3 in
  • Width: 2044 mm80.5 in
  • Height: 1981 mm78.0 in
  • Trunk Capacity: 3700 liter130.7 cu ft
  • Trunk Capacity (Max): 4400 liter155.4 cu ft
