Ford LogoFord C-MAX Dimensions

The Ford C-MAX is a compact multi-purpose vehicle (MPV) that has been produced since 2003, offering versatile size and practical interior space ideal for families. Over its generations, the C-MAX evolved significantly, with improvements in dimensions, fuel efficiency, and technology. The first generation was based on Ford's global C platform, followed by a redesigned second generation with hybrid and plug-in hybrid variants, enhancing its eco-friendly appeal. Known for its smart use of space and comfortable driving experience, the Ford C-MAX remains a popular choice in the compact MPV segment.

You can click on any letter below to filter and display car generations that start with that letter.

Discontinued Generations

2015 Ford C-MAX II (facelift 2015)

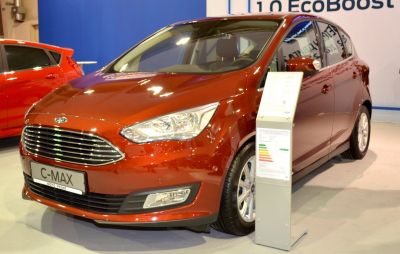

Red hatchback front view with grille and headlights
1626 mm
L:4409 mm | W:2085 mm

2015 Ford C-MAX II (facelift 2015)

    Discontinued Model
  • Production: 2015-2019
  • Model Year: 2015
Body Style: Minivan
  • Length: 4379-4409 mm172.4-173.6 in
  • Width: 2067-2085 mm81.4-82.1 in
  • Height: 1610-1626 mm63.4-64.0 in
  • Trunk Capacity: 432-544 liter15.3-19.2 cu ft
  • Trunk Capacity (Max): 1212-1684 liter42.8-59.5 cu ft

2015 Ford Grand C-MAX (facelift 2015)

Front-side angle showing facelift grille and alloy wheels
1694 mm
L:4519 mm | W:2067 mm

2015 Ford Grand C-MAX (facelift 2015)

    Discontinued Model
  • Production: 2015-2019
  • Model Year: 2015
Body Style: Minivan
  • Length: 4519 mm177.9 in
  • Width: 2067 mm81.4 in
  • Height: 1642-1694 mm64.6-66.7 in
  • Trunk Capacity: 65-520 liter2.3-18.4 cu ft
  • Trunk Capacity (Max): 1715-1787 liter60.6-63.1 cu ft

2011 Ford C-MAX II

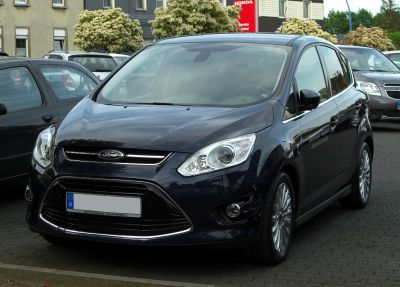

Front view with large grille and distinctive headlights
1626 mm
L:4380 mm | W:2067 mm

2011 Ford C-MAX II

    Discontinued Model
  • Production: 2010-2015
  • Model Year: 2011
Body Style: Minivan
  • Length: 4380 mm172.4 in
  • Width: 2067 mm81.4 in
  • Height: 1626 mm64.0 in
  • Trunk Capacity: 432 liter15.3 cu ft
  • Trunk Capacity (Max): 1723 liter60.8 cu ft

2011 Ford Grand C-MAX

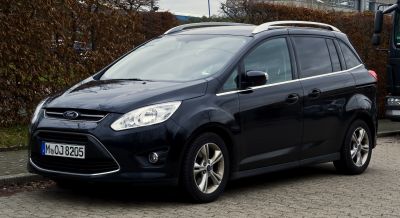

Front three-quarter view with headlights, grille, and roof rails
1684 mm
L:4520 mm | W:1828 mm

2011 Ford Grand C-MAX

    Discontinued Model
  • Production: 2010-2015
  • Model Year: 2011
Body Style: Minivan
  • Length: 4520 mm178.0 in
  • Width: 1828 mm72.0 in
  • Height: 1684 mm66.3 in
  • Trunk Capacity: 56 liter2.0 cu ft
  • Trunk Capacity (Max): 1706 liter60.2 cu ft

2007 Ford C-MAX (Facelift 2007)

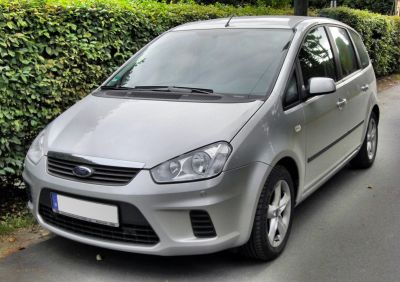

Silver compact MPV with distinctive front grille and headlights
1595 mm
L:4372 mm | W:1825 mm

2007 Ford C-MAX (Facelift 2007)

    Discontinued Model
  • Production: 2007-2010
  • Model Year: 2007
Body Style: Minivan
  • Length: 4372 mm172.1 in
  • Width: 1825 mm71.9 in
  • Height: 1595 mm62.8 in
  • Trunk Capacity: 460-550 liter16.2-19.4 cu ft
  • Trunk Capacity (Max): 1620 liter57.2 cu ft

2004 Ford C-MAX

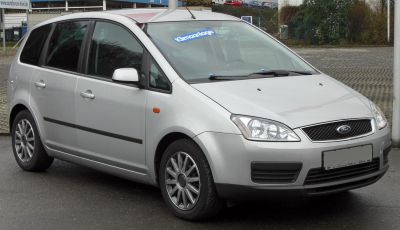

Front side view of compact MPV with alloy wheels and distinctive headlamps
1601 mm
L:4372 mm | W:2022 mm

2004 Ford C-MAX

    Discontinued Model
  • Production: 2003-2007
  • Model Year: 2004
Body Style: Minivan
  • Length: 4330-4372 mm170.5-172.1 in
  • Width: 1820-2022 mm71.7-79.6 in
  • Height: 1588-1601 mm62.5-63.0 in
  • Trunk Capacity: 460-550 liter16.2-19.4 cu ft
  • Trunk Capacity (Max): 1620 liter57.2 cu ft
