2014 Citroen DS 3 (Phase II, 2014) Dimensions, Size & Specs

With mirrors folded, the Citroen DS3 Phase II spans approximately 1715 - 1717 mm (67.5 - 67.6 inches) in width. When the side mirrors are opened, the overall width increases to 2004 mm (78.9 inches). This is an important consideration for tight parking spaces or narrow streets, as the opened mirror width adds about 29 cm (11.4 inches) to the vehicle's footprint, impacting maneuvering clearance and garage fit.

The luggage capacity of the Citroen DS3 Phase II is fairly practical for a subcompact hatchback. With the rear seats in the upright position, it provides 285 liters (10.1 cubic feet) of cargo space, ideal for everyday needs such as groceries or small luggage. When the rear seats are folded down, the capacity expands significantly to 980 liters (34.6 cubic feet), enhancing its versatility to carry larger or bulkier items, making it suitable for weekend trips or transporting furniture components.

The curb weight of the Citroen DS3 Phase II ranges from 974 kg to 1215 kg (2148 to 2678 pounds), which depends on variant and equipment levels. The maximum permitted weight ranges between 1511 kg and 1653 kg (3330 to 3644 pounds), including passengers, cargo, and fuel. This relatively low curb weight enhances fuel efficiency and nimble handling, while the maximum weight capacity ensures safe carrying capabilities without compromising driving stability.

The DS3 Phase II offers a choice of rim sizes including 16, 17, and 18-inch wheels to suit various preferences of style and performance. Correspondingly, tire sizes available are 195/55 R16, 205/45 R17, and 215/40 R18. These options allow drivers to balance between ride comfort, road grip, and sporty handling characteristics, with larger wheels typically providing sharper cornering capabilities but a firmer ride.

The Citroen DS3 Phase II, with its maximum length of 3962 mm (156.1 inches) and width of 1717 mm (67.6 inches) — or 2004 mm (78.9 inches) with mirrors opened — is compact enough to fit in most standard residential garages, which typically have widths around 2400–2700 mm (94.5–106 inches) and lengths around 4800–6000 mm (189–236 inches). However, care should be taken when opening doors and mirrors; mirror width necessitates cautious maneuvering to avoid damage. Overall, its size is well-suited for city garages.

Compared to the first generation DS3, the Phase II model introduced subtle dimensional changes. The overall length remained similar, hovering around 3948-3962 mm (155.4-156.1 inches), but the Phase II benefited from slight refinements in width and height, increasing to 1715-1717 mm (67.5-67.6 inches) wide and about 1443-1458 mm (56.8-57.4 inches) tall, thus offering marginally more interior space and a refreshed stance. Weight was adjusted for new features and safety enhancements, with the curb weight spanning 974 to 1215 kg (2148 to 2678 lbs), somewhat heavier than the predecessor. These dimension tweaks improved stability and practicality while maintaining the compact charm.

In comparison with its segment competitors, the Citroen DS3 Phase II offers a competitive size and practicality balance. It is slightly longer than the Mini Cooper (approx 3850 mm/151.6 inches) and Audi A1 (approx 3980 mm/156.7 inches), positioning it mid-range in terms of length. Width-wise, the DS3’s 1715-1717 mm (67.5-67.6 inches) is narrower than the Audi A1's 1740 mm (68.5 inches) but comparable to the Mini. Cargo volume of 285 liters (10.1 cu ft) with rear seats upright and 980 liters (34.6 cu ft) folded matches or slightly exceeds the Mini’s capacity, though it is generally a bit smaller than the Audi A1’s maximum. Overall, the DS3 stands out with distinctive French style and a comfortable interior despite its compact footprint.

The Citroen DS3 Phase II has a roof load capacity of 70 kg (approximately 154 lbs). This means that any roof racks, cargo boxes, or other mounted equipment must not exceed this weight limit to ensure safety and avoid potential damage to the roof structure or interference with vehicle handling. When planning to transport larger or heavier items on the roof, it is essential to stay within this specifications and evenly distribute the load to maintain optimal driving performance and safety.

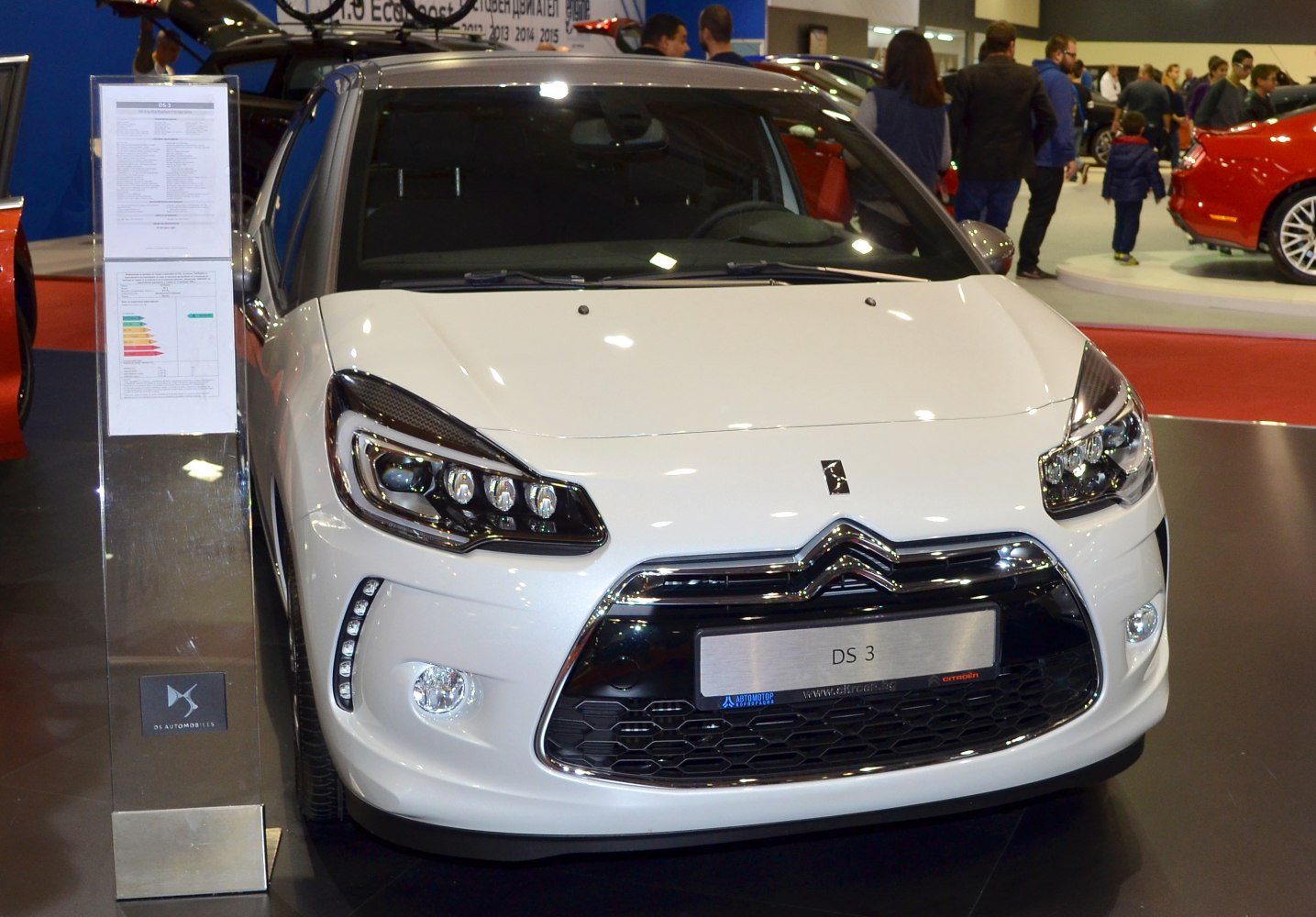

The Citroen DS3 Phase II from 2014 to 2016 is available as a stylish 3-door hatchback, distinguished by its distinctive 'floating roof' design, customizable contrasting roof colors, and chic French aesthetic. The car’s exterior combines compact dimensions with eye-catching details such as LED daytime running lights, sharp creases, and sculptural side panels. Inside, it offers premium materials and a driver-focused cockpit. This generation enhanced the original DS3’s charm by incorporating modern technology and minor styling updates while maintaining its unique character in the subcompact luxury hatchback market.
